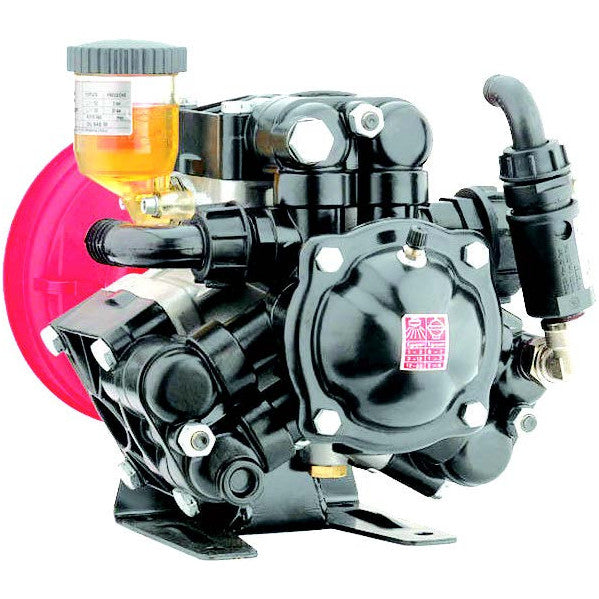

PTO Driven Sprayer Pump - AR 115 bp C cod. 1203

AMA IrelandSKU: ADIAR115

If you are an existing customer please login

Login

Description

Max Flow: 107.9 L/Min

Max Pressure: 20 Bar (290 PSI)

Power: 5.5HP

RPM: 550

Suction: Ø: 40mm

Outlet: Ø: 25mm

Product Details:
Alternating volumetric pumps with three semi-hydraulic diaphragms for use in agriculture in low pressure systems for spraying open field crops with fertilisers, pesticides or weed killers.

Parts in contact with pumped liquids in plastic-coated aluminium and stainless steel. Diaphragms in NBR.

Seals in NBR or Viton. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.

Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. New-design diaphragm cut-out system to prevent contact tearing even
in heavy-duty operating conditions.

Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.

Rugged feet secured to pump casing. GEOMET coated or stainless steel metal
fasteners.

Stopper for drainage of liquid from the circuit before storage over winter.

Complete with relief valve with manual reset and drive shaft guard.
